Design Luidspreker

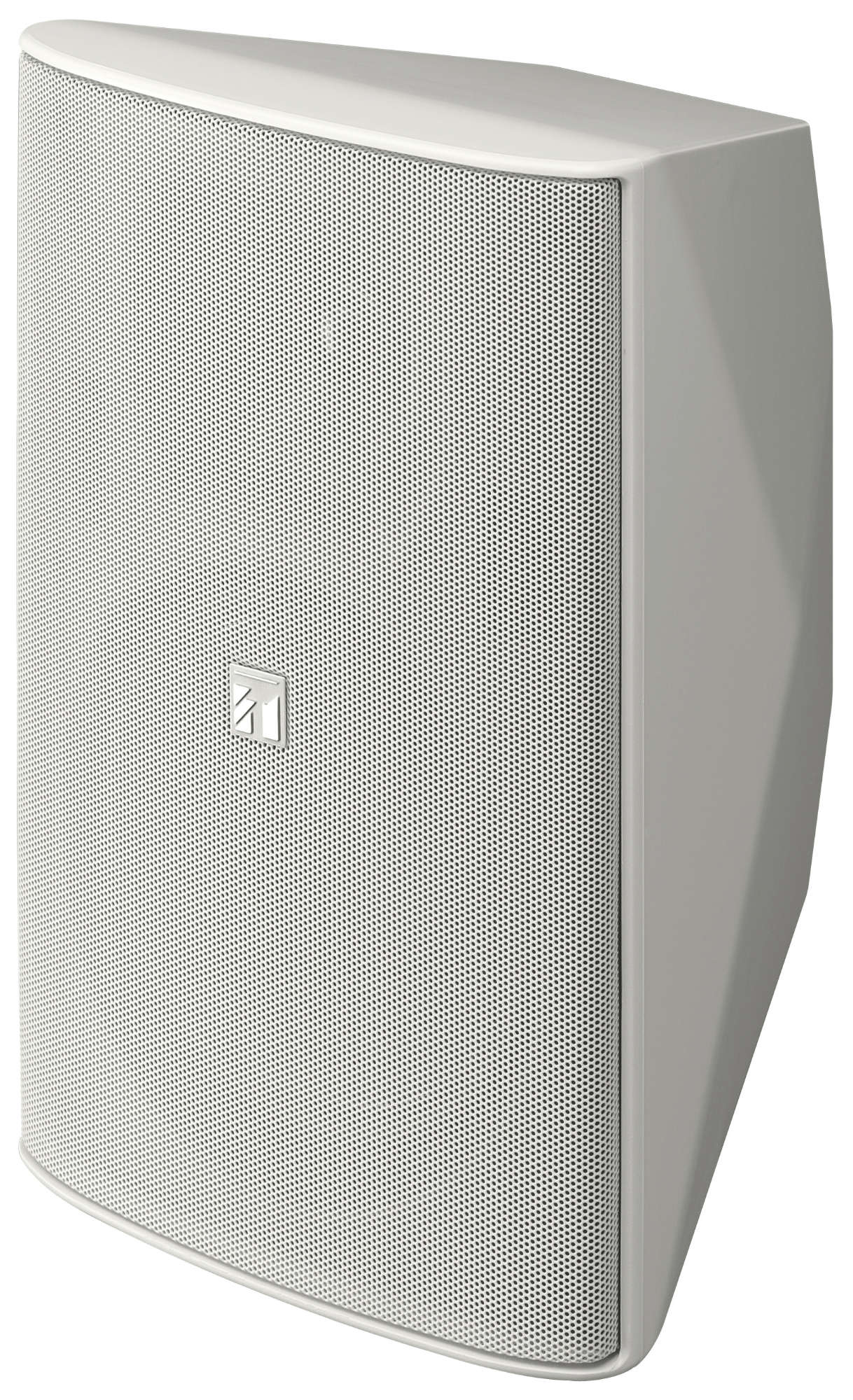

De F-2000 serie luidspreker is een compact tweewegs luidsprekersysteem dat ontwikkeld is voor een optimale efficiency, een groot bereik en krachtige ingangsbedieningsmogelijkheden. Deze luidsprekersystemen kunnen worden geïnstalleerd op een wijze die ideaal is voor de locatie en beoogde toepassing. De F-2000BTWP biedt een watervast ontwerp (de spatbestendige uitvoering voldoet aan de IPX4-norm), waardoor hij permanent buiten kan worden geïnstalleerd.
F-2000WTWP | F-2000B | F-2000BT | F-2000BTWP | F-2000W | F-2000WT | |
---|---|---|---|---|---|---|
Frequentie respons |
65 Hz - 20 kHz |
65 Hz - 20 kHz |
65 Hz - 20 kHz |
65 Hz - 20 kHz |
65 Hz - 20 kHz |
65 Hz - 20 kHz |
Gevoeligheid (1 W, 1 m) (waarde) |
92 dB |
92 dB |
92 dB |
92 dB |
92 dB |
92 dB |
Vermogen instellingen |
100 V (60 / 30 / 15 / 3 W), 70 V (60 / 30 / 15 / 7.5 / 1.5 W) |
100 V (60 / 30 / 15 / 3 W), 70 V (60 / 30 / 15 / 7.5 / 1.5 W) |
100 V (60 / 30 / 15 / 3 W), 70 V (60 / 30 / 15 / 7.5 / 1.5 W) |
100 V (60 / 30 / 15 / 3 W), 70 V (60 / 30 / 15 / 7.5 / 1.5 W) |
||
Luidspreker component |
Laag: 20 cm conus-type, Hoog: 2.5 cm "balanced dome-type" |
Laag: 20 cm conus-type, Hoog: 2.5 cm "balanced dome-type" |
Laag: 20 cm conus-type, Hoog: 2.5 cm "balanced dome-type" |
Laag: 20 cm conus-type, Hoog: 2.5 cm "balanced dome-type" |
Laag: 20 cm conus-type, Hoog: 2.5 cm "balanced dome-type" |
Laag: 20 cm conus-type, Hoog: 2.5 cm "balanced dome-type" |
Bedrijfstemperatuur |
-10 °C to +50 °C ( 14 °F to 122 °F) |
-10 °C to +50 °C ( 14 °F to 122 °F) |
||||
Afwerking |
HIPS hars, gebroken wit (RAL 9010 of gelijkwaardig) |
HIPS hars, zwart (RAL 9011 of gelijkwaardig) |
HIPS hars, zwart (RAL 9011 of gelijkwaardig) |
HIPS hars, zwart (RAL 9011 of gelijkwaardig) |
HIPS hars, gebroken wit (RAL 9010 of gelijkwaardig) |
HIPS hars, gebroken wit (RAL 9010 of gelijkwaardig) |
Afmetingen |
244 x 373 x 235 mm (W x H x D) |
244 x 373 x 235 mm (W x H x D) |
244 x 373 x 235 mm (W x H x D) |
244 x 373 x 235 mm (W x H x D) |
244 x 373 x 235 mm (W x H x D) |
244 x 373 x 235 mm (W x H x D) |
Gewicht |
7,4 kg |
6,5 kg |
7,4 kg |
7,4 kg |
6,5 kg |
7,4 kg |
Aansluiting |
Klem aansluiting |
Klem aansluiting |
Klem aansluiting |
Klem aansluiting |
Klem aansluiting |
Klem aansluiting |
Geluidsdrukniveau (1 W, 1 m) |
92 dB at installation in 1/2 free sound field 93 dB at installation in 1/2 free sound field with horn adapter |
92 dB at installation in 1/2 free sound field 93 dB at installation in 1/2 free sound field with horn adapter |
92 dB at installation in 1/2 free sound field 93 dB at installation in 1/2 free sound field with horn adapter |
92 dB at installation in 1/2 free sound field 93 dB at installation in 1/2 free sound field with horn adapter |
92 dB at installation in 1/2 free sound field 93 dB at installation in 1/2 free sound field with horn adapter
|
92 dB at installation in 1/2 free sound field 93 dB at installation in 1/2 free sound field with horn adapter |
Nominaal ingangsvermogen (hoge impedantie) |
60 W |
60 W |
60 W |
60 W |
||
Crossover frequentie |
2.500 Hz |
2.500 Hz |
2.500 Hz |
2.500 Hz |
2.500 Hz |
2.500 Hz |
Accessoire (inbegrepen) |
Luidsprekerbeugel x 1, verbindingsbeugel x 1, wandhouder x 1, beugelbevestigingsschroef x 1 set, hoornadapter x 1, hoornadaptermontageschroef x 4, klemdeksel x 1, klemdekselmontageschroef x 4 |
Luidsprekerbeugel x 1, verbindingsbeugel x 1, wandhouder x 1, beugelbevestigingsschroef x 1 set, hoornadapter x 1, hoornadapter montageschroef x 4 |
Luidsprekerbeugel x 1, verbindingsbeugel x 1, wandhouder x 1, beugelbevestigingsschroef x 1 set, hoornadapter x 1, hoornadaptermontageschroef x 4, klemdeksel x 1, klemdekselmontageschroef x 4 |
Luidsprekerbeugel x 1, verbindingsbeugel x 1, wandhouder x 1, beugelbevestigingsschroef x 1 set, hoornadapter x 1, hoornadaptermontageschroef x 4, klemdeksel x 1, klemdekselmontageschroef x 4 |
Luidsprekerbeugel x 1, verbindingsbeugel x 1, wandhouder x 1, beugelbevestigingsschroef x 1 set, hoornadapter x 1, hoornadapter montageschroef x 4 |
Luidsprekerbeugel x 1, verbindingsbeugel x 1, wandhouder x 1, beugelbevestigingsschroef x 1 set, hoornadapter x 1, hoornadaptermontageschroef x 4, klemdeksel x 1, klemdekselmontageschroef x 4 |
Nominaal ingangsvermogen (lage impedantie) |
60 W (continue pink noise), 180 W (continue vermogen) |
60 W (continu roze ruis), 180 W (continu programma) in 8Ω modus |
60 W (continue pink noise), 180 W (continue vermogen) |
60 W (continu roze ruis), 180 W (continu programma) in 8Ω modus |
||
Nominale impedantie |
8 Ω |
8 Ω |
8 Ω |
8 Ω |
